Eco Smart CNC Plasma & Flame cutting machine

Eco Smart CNC Plasma & Flame cutting machine…

Quick Cut Technologies CNC gantry cutting system is a piece of modern cutting equipment, which controlled by the digital program. Except for the high automation, it has the advantages of high precision, efficiency, and material utilization. With the development of machinery and electronics and computer technology, CNC cutters are more and more attended by enterprises due to good man-machine interface dialogue, strong auxiliary functions, and lower equipment investment. It is widely used in many fields like car, shipyard, an engineering company and so on. The CNC cutter is constituted of the framework, vertical drive, horizontal drive, rail, cutting torch components, CNC system, gas circuit system, electric system, and vertical, the horizontal towing device of hoses.

The configuration of this CNC plasma cutting machine in Gujarat is especially for the small hole cut with very good quality without slag. Based on the Hypertherm Ture hole plasma cutting technology our CNC cutting machine could cut the minimum diameter as same as the thickness from 6 to 32mm.

CNC Gantry plasma cutting machine - Eco Smart series

Eco Smart series Gantry CNC Cutting Machine is a new product which launched by us Quick Cut Technologies in 2012. It has features of compact size, lightweight, complete functions, and big effective cutting size. It enjoys all functions of traditional heavy-duty gantry CNC cutting machines.


Name Quick Cut Technologies Eco Smart series Gantry CNC Cutting Machine
Model HBS-3000×6000×1+1A
Structure Gantry, dual drive, Panasonic servo motor, and Japan Gear or Mitsubishi motor with Germany Gear
Track span & Guide rail 3000×6000mm, rail length can be extended every 2 meters
Effective cutting size 2400×4500mm; length can be extended every 1 meter
Transmission Longitudinal and Transversal main trolleys: rack & pinionTransversal slave trolley: steel belt
Tube Transmission Transversal: Industrial plastic drag chain; Longitudinal: Hanging pulleys or earthing drag chain
Cutting thickness Oxy-fuel 6-150 mm; Plasma:2-32mm depends on plasma capacity;
Torch No. 2
Torch height control Motorized
Servo system Dual AC Panasonic servo drive systems
CNC system HBCNC
Speed regulation range 0–12 m/min
Cutting fuel Oxy-fuel: Oxygen +Acetylene/PropanePlasma: Depends on the plasma power source required
File transmission USB
Accuracy Complete machine: accords with JB/T5102-1999 standard, Cutting dimension accuracy and quality: accords with JB/T10045.3-1999 standard,

the national standard A and I level.

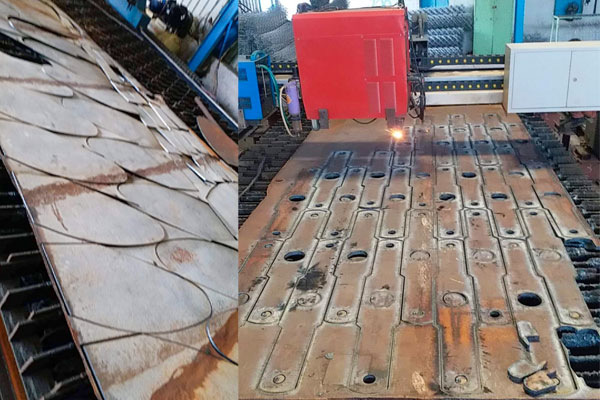

Cutting Sample
