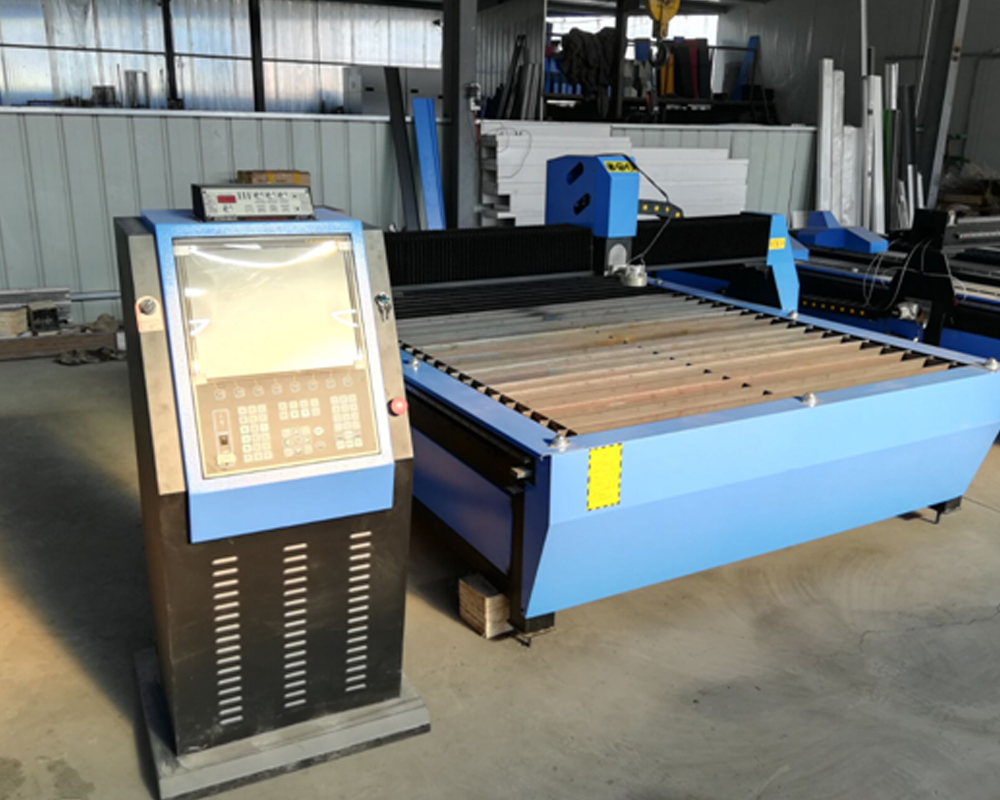

Table Type CNC Plasma Cutting Machine

This CNC machine for sheet metal cutting table-Trailblazer adopts integral structure, making installation easier and more reliable. This cutting table adopts double-side driving to make the torch does longitudinal movement followed by straight tracks. The light design of the crossbeam has good rigidity, light self-weight, and good stability of movement. The machine is equipped with water tank type dust-removing equipment, in order to achieve environmental protection requirements; a smoking type dust-removing equipment also can be applied according to the customer’s needs. The plasma table is suitable for high-speed cutting thin sheet made of stainless steel, aluminium sheet and nonferrous metals etc. Additionally, it also has able to cutting thick plate. The machine is widely applied for sheet-metal working, auto parts, Wind turbines, and steel mould industries, etc .


  • Model: HBTO-1530
  • Working size: 1500mm x 3000mm
  • Desktop type
  • 0-10000mm/min cutting speed
  • Step motor and servo motors for option:


Working Area 1300*2500mm(51.2*98.4) or 1500*3000mm
Drive system Japan AC servo motor and Gear & step motor for optional
Cutting Thickness 0.5-25mm mild steel by plasma ;6-50mm mild steel by oxy-fuel cutting
Cutting Speed 0-10m/min
Moving Speed 0-10m/min
Power 3KW+Plasma power
Input Voltage 3 phase 380V440V, or 1 phase 220V
Power Frequency 50Hz,60Hz
Files Transfer USB Interface
Arc Untouched Arc Striking,Hypertherm,ESAB,Victor,

China Taiwan plasma generator option
